Подробная информация о продукте:
Оплата и доставка Условия:
|
| Размер ПКБ: | 80*350мм~350*1200мм | струбцина пкб; инг: | регулируемое давление пневматическое |
|---|---|---|---|
| Система: | виндовс7 | Программное обеспечение: | НИОКР независимо |
| Дисплей: | монитор экрана касания | входное устройство: | клавиатура, мышь |
| Нет камеры: | 5 | Сила: | 380АК 50ХЗ |
| консмптион силы: | 6кв | режим установки: | Группа в составе группа в составе ручка |
| Космос компонентов: | 0.2мм | станции фидеров: | 68ПКС |
| Сопла: | 68ПКС | Скорость установки: | 200000КПХ |
| Высота установки: | 13мм |

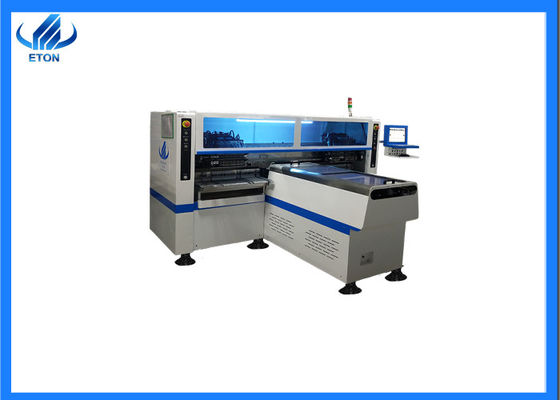

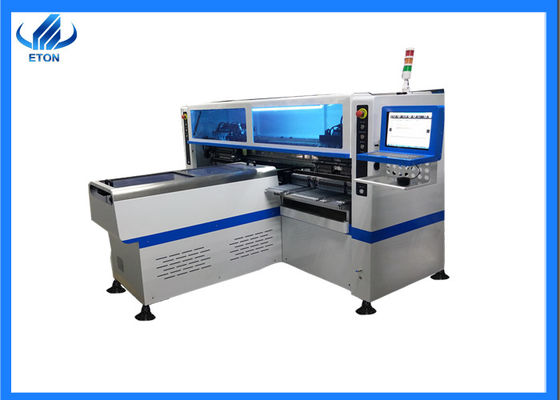

1.product details
Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
2.product Technical parameters of high speed pick and place machine
| Model number | HT-F9 |
| Dimension | 2700*2120*1550mm |
| PCB size | 1200*330～80*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.03mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components | LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 68pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
3.product features of smt pick and place machine
4. The warranty
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
