Подробная информация о продукте:
Оплата и доставка Условия:
|
Размер ПКБ: | 50*50мм~400*350мм | струбцина пкб; инг: | регулируемое давление пневматическое |
---|---|---|---|
Система: | виндовс7 | Программное обеспечение: | НИОКР независимо |
Дисплей: | монитор экрана касания | входное устройство: | клавиатура, мышь |
Нет камеры: | 2 | Сила: | 380АК 50ХЗ |
консмптион силы: | 4КВ | режим установки: | Соберите ручку цента взятия, ручку цента взятия цента |
Космос компонентов: | 0.2мм | станции фидеров: | 32пкс |
Сопла: | 10пкс | Скорость установки: | 40000КПХ |
Высота установки: | 40мм |
1.product details

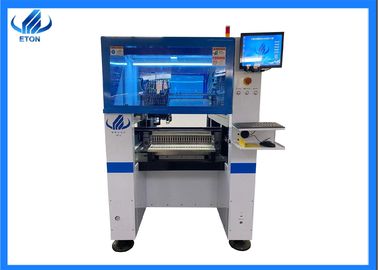

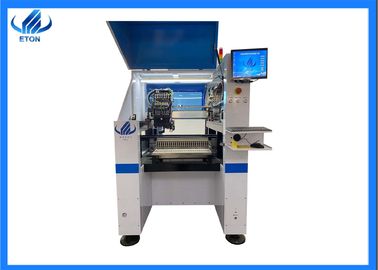

Rt-1 is a single-module multifunctional mounting machine with a capacity of 30000CPH~35000CPH. The components that can be mounted include LED3014/3020/3528/5050, capacitors, resistors, IC and special-shaped components.it applies to LED light and electric board.
2.product Technical parameters of high speed pick and place machine
Place of origin | Guangdong,China |
Model number | RT-1 |
dimension | 1104*1584*1655 |
PCB size | 50*50~400*350 |
PCB thickness | 0.1~6mm |
Mounting speed | 30000~35000CPH |
Mounting mode | Group picking and separate placing, separate picking and separate placing. |
Mounting precision | ±0.02cm |
Feeder stations | 32pcs |
nozzles | 10pcs |
Mounting height | 40mm |
No.of camera | 2 sets of imported camera |
3.product features of smt pick and place machine
4. The warranty
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
5.Packing & delivery of smt mounter machine
6.Company profile
Business terms:
Accepted delivery terms | EXW, FOB, CIF, CFR |
Accepted payment currency | USD,CNY |
Accepted payment type | L/C, T/T |
Nearest port | Shenzhen |
7.Our Our certificates and certifications
8. trade show
9. FAQ
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Adaptability of SMT placement machine
Operation Process of Patch Machine
① Screen printing mold adjustment to ensure that the printed solder paste is not defective;
② check PCB circuit board for defects, for deformation, no MARK point or MARK point irregular circuit board, non-print tin paste ,(returned to warehouse);
③ Check the tin paste for welding, printing bad, or other bad conditions, should clean the PCB board, with alcohol cleaning with the air gun blow dry, and then baking re-printing paste.
① Return the TABLE used on the D board to both sides when feeding;
② Take off the feeder( feeder from the D shaft carefully and feed as required.
③ Put the feeder flat on the D axis after good material, should not warp;
④ feeder should be exposed on each feeding material, easy to absorb suction mouth, and check D-DATA, no feeding errors;
⑤ To check feeder loose, abnormal, if bad, repair and maintenance feeder; immediately
⑥ Should there be a TAPY Feeder alarm, must carefully check whether there is a feeder cover with or without warp.
⑦ place the PCB board on the machine transport track in the required direction, and require no more than 5 boards on PCB machine track (including one of the X Y TABLE).
remove the pasted PCB board from the placement machine guide in time and be sensed by the sensor.
QC employee shall correct all defects (e.g.: shift, dewelding, component misleakage, etc.) on the pasted PCB board according to the operation drawings, and put the corrected PCB board into the plug-in box.
① The whole or partial displacement of the element;
② The missing parts, component skew etc.
③ Check that directional patch elements are in the right direction, such as Triode, ICs, BGA, varactors and executives.
