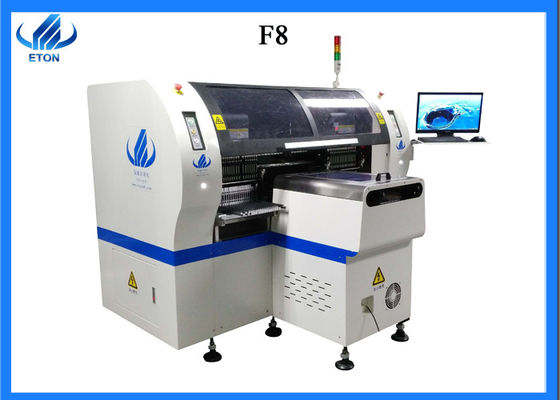

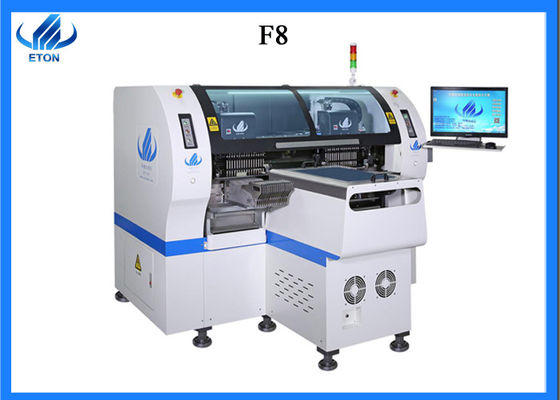

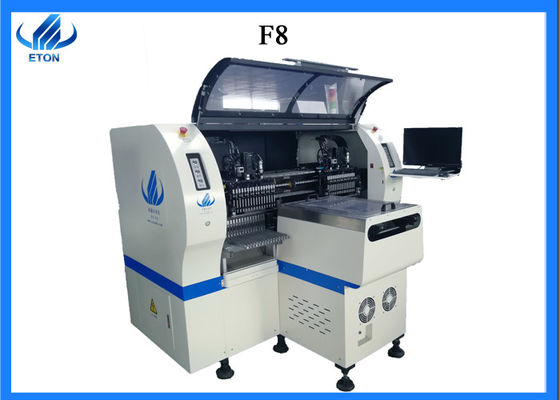

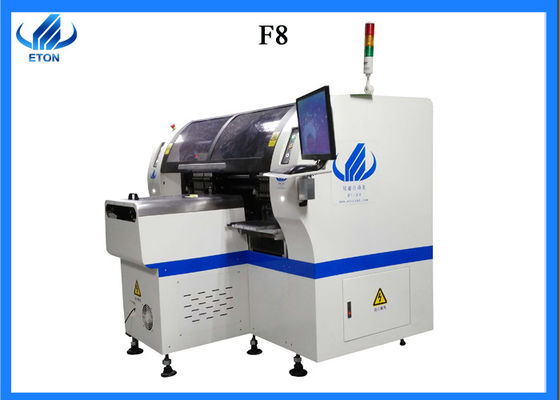

smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor


5.Company profile

Business terms:



6.Our  Our certificates and certifications


7. trade show

8. FAQ

contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825



Industry related knowledge

• Features of Multifunctional Placement Machine

• Multi-function placement machine can mount high-precision large, special-shaped components, generally can also mount small flake components, can cover almost all components range, so called multi-function placement machine.
• The structure of multi-function placement machine mostly adopts arch frame structure, which has the characteristics of high precision and good flexibility.
• The multi-function placement machine mostly uses the circuit board fixed type, uses the mount head movement to realize the X and the y localization, will not cause the large or the heavier component to shift because of the inertia because of the table surface movement.
• Multi-function patch can accept all material packing methods, such as reel, tube, box and tray. In addition, when more disk material, can be added multi-layer special tray feeder.
• In addition to the traditional vacuum suction nozzle, the multi-function placement machine can use a special suction nozzle for the components which are difficult to absorb by special shape. In addition, pneumatic claw can be used for the components which are absorbed by vacuum suction nozzle.
• The multi-function placement machine components generally use the upper view camera when correcting, which has the functions of front light, side light, backlight and online light, and can identify different components. If the size of the component is too large to exceed the camera's individual image (FOV), the upper camera can also be analyzed and corrected by multiple post-image synthesis. Some multi-function mounting machine mount head also equipped with mount head moving camera, can identify smaller non-carrying components.
• Compared with the high-speed mounting machine, some high-speed mounting machines can reach 5~10 times faster than the multi-function machine can mount the same components. Therefore, in medium and large-scale production, generally according to the characteristics of the product will be reasonable configuration, so that the efficiency of each equipment is close to high.
