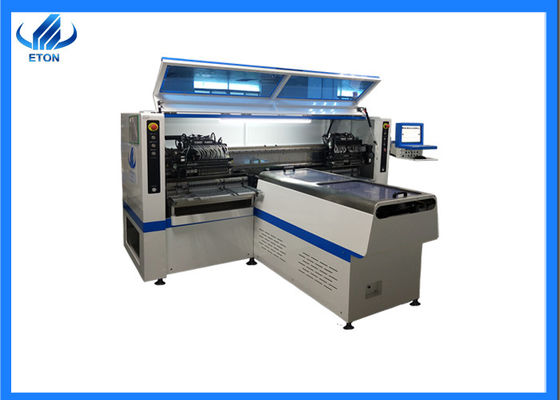

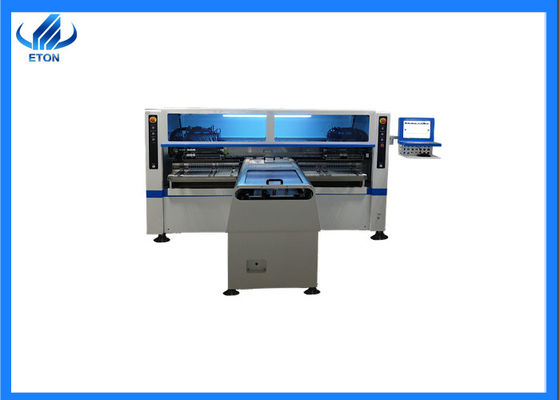

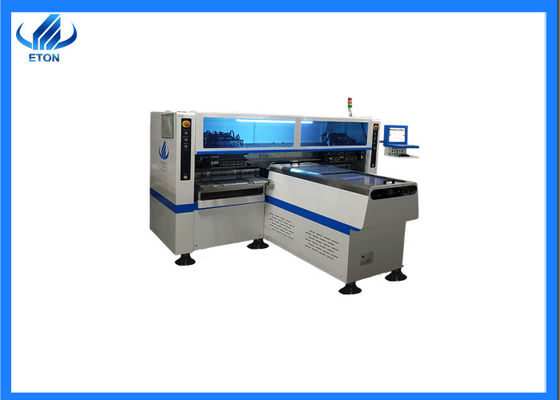

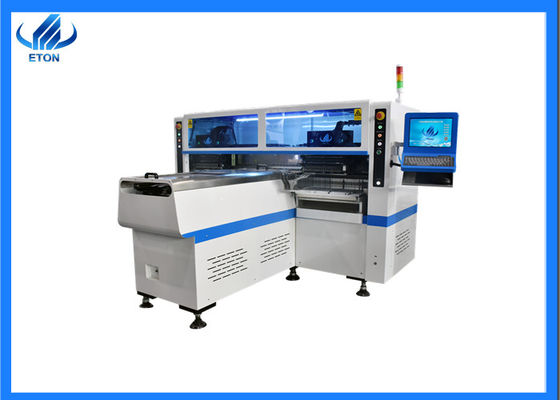

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear motor high speed mounter machine,

6.Company profile

7.Our  clients

8.FAQ

• SMT placement speed

SMT the speed of the placement machine is generally divided into theoretical speed and actual speed. The theoretical speed refers to the patch speed of the placement machine in the optimal state, including the speed under the optimal arrangement of the Fida installation sequence, the patch sequence, the patch head selection, etc. The actual speed is that in the actual production situation, the real speed is generally lower than the theoretical speed because it is impossible to reach the optimal state in the specific situation. To improve the speed of SMT placement machine is to improve the SMT placement machine's actual patch speed, and to improve the SMT placement machine's actual patch speed should be considered from several aspects.

SMT theoretical speed is the amount obtained by absorbing 0402 component equipment on a dedicated test board at full speed to identify the mount. It usually takes only a few minutes to calculate a theoretical value of one hour.

The placement machine is classified according to the SMT patch speed, and the placement machine can be divided into low speed, medium speed, high speed and massive patch system (the patch rate is more than 20,000 per h).

(1) Low speed mounting machine. A low-speed placement machine has a patch rate of less than 3000 h.. The loading cycle time is generally less than 1 s/ point, which is generally suitable for product trial production, new product development, small batch production and special SMC/SMD.

(2) Medium speed mounting machine. The patch rate of medium speed placement machine is generally 3000~8000 pieces / h, patch cycle time is generally at 1~0.5 points. it is suitable for situations with wide SMC/SMD range, rich accessories, perfect function, high patch accuracy and certain production efficiency. In addition, the performance-price ratio of equipment is moderate, is the priority of small and medium batch production equipment.

(3) High speed mounting machine. The patch rate of high speed placement machine is more than 8000 per h, and the patch cycle time is less than 0.4 s/ points. High production efficiency, suitable for mass production, especially for the use of a large number of chip capacitors, chip resistors and small SMD occasions, and a small number for the production of special SMD.
